Ground Loading Trailer

Pivot Arm Corner Plates

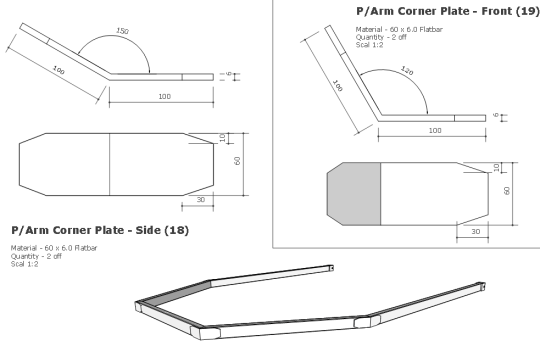

Cut and bend the corner plates as per the details below.

Do not weld the plates until the pivot arm is installed on the main chassis and squared to the frame.
